Torgier Parts — G.E.T. Parts Catalogue

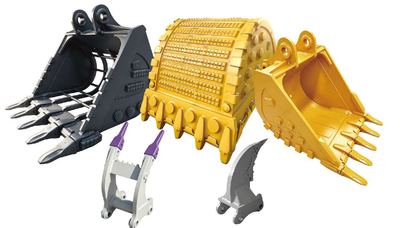

No.	Model	Capacity (m³)	STD (kg)	RC (kg)	TL (kg)
1	200	0.8	650	710	790.0
2	200	0.9	690	750	810.0
3	200	1.0	740	850	930.0
4	200	1.1	800	890	970.0
5	200-270	1.0	760	870	950.0
6	200-270	1.1	830	910	990.0
7	200-270	1.2	900	1000	1160.0
8	200-270	1.3	970	1120	1270.0
9	200-270	1.4	1080	1190	1250.0
10	200-270	1.5	1190	1280	1450.0
11	300-380	1.4	1120	1210	1360.0
12	300-380	1.5	1220	1310	1470.0
13	300-380	1.6	1310	1420	1580.0
14	300-380	1.7	1400	1510	1660.0
15	300-380	1.8	1510	1630	1800.0

No.	Model	Size (mm)	Weight (kg)
1	PC60	17×70	0.1
2	PC100	19×78	0.2
3	PC200	20×78	0.2
4	PC200	25×100	0.4
5	PC300	25×120	0.4
6	PC300	25×120	0.5
7	PC400	30×145	0.8
8	PC400	30×145	0.8
9	PC400	30×152	0.9
10	CAT307/3222	14×70	0.1
11	CAT312/3252	16×78	0.1
12	CAT315/3302	16×95	0.2
13	CAT320/3352	20×105	0.3
14	CAT325/3402	23×120	0.4
15	CAT330/8452	25×135	0.6
16	CAT345/8552	25×158	0.6
17	DH150	18×85	0.2
18	DH220	20×105	0.3
19	DH300	22×115	0.4
20	DH360	25×100	0.4
21	DH500	25×148	0.6
22	DH280	20×118	0.3
23	EX1000	20×115	0.4
24	SK230	22×122	0.4
25	R200	20×105	0.3
26	VOLVO210	20×105	0.2
27	VOLVO360/460	32×120	0.8
28	VOLVO480	32×143	0.9
29	SK200	19×98	0.2
30	DH55	18×78	0.1
31	RS115	20×96	0.3
32	D50	32×154	1.0
33	D11	36×170	1.5

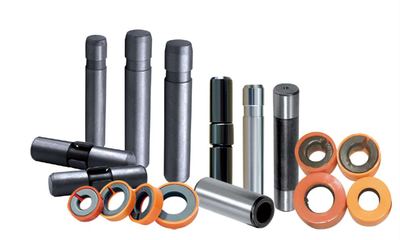

No.	Size (mm)	No.	Size (mm)	No.	Size (mm)	No.	Size (mm)
1	35×210	51	55×420	101	70×390	151	90×530
2	35×290	52	55×430	102	70×400	152	90×540
3	35×300	53	60×310	103	70×410	153	90×550
4	40×280	54	60×320	104	70×420	154	90×560
5	40×290	55	60×330	105	70×430	155	90×570
6	40×300	56	60×340	106	70×440	156	90×580
7	40×320	57	60×350	107	70×450	157	90×590
8	40×340	58	60×360	108	70×460	158	90×600
9	40×360	59	60×370	109	70×470	159	90×610
10	45×260	60	60×380	110	70×480	160	90×620
11	45×270	61	60×390	111	70×490	161	90×630
12	45×280	62	60×400	112	70×500	162	90×640
13	45×290	63	60×410	113	70×520	163	90×650
14	45×300	64	60×420	114	70×530	164	90×660
15	45×310	65	60×430	115	70×540	165	90×670
16	45×320	66	60×440	116	70×550	166	90×670
17	45×330	67	60×450	117	70×560	167	90×680
18	45×340	68	60×460	118	70×570	168	90×690
19	45×350	69	60×470	119	70×580	169	90×700
20	45×360	70	60×480	120	70×590	170	90×710
21	45×380	71	60×490	121	70×600	171	90×720
22	45×390	72	60×500	122	70×610	172	90×730
23	45×400	73	60×510	123	70×620	173	100×580
24	50×280	74	60×520	124	70×630	174	100×590
25	50×290	75	60×530	125	80×420	175	100×600
26	50×300	76	60×550	126	80×430	176	100×620
27	50×310	77	60×560	127	80×440	177	100×630
28	50×320	78	65×300	128	80×450	178	100×640
29	50×330	79	65×310	129	80×460	179	100×650
30	50×340	80	65×320	130	80×470	180	100×660
31	50×350	81	65×330	131	80×480	181	100×680
32	50×370	82	65×340	132	80×490	182	100×690
33	50×380	83	65×350	133	80×500	183	100×700
34	50×390	84	65×360	134	80×510	184	100×710
35	50×400	85	65×370	135	80×520	185	100×720
36	50×410	86	65×380	136	80×530	186	100×730
37	50×420	87	65×390	137	80×540	187	100×740
38	50×430	88	65×400	138	80×550	188	100×750
39	55×300	89	65×410	139	80×560	189	110×600
40	55×310	90	65×420	140	80×570	190	110×620
41	55×320	91	65×430	141	80×580	191	110×630
42	55×330	92	65×440	142	80×590	192	110×650
43	55×340	93	65×450	143	80×600	193	110×660
44	55×350	94	65×460	144	80×610	194	110×680
45	55×360	95	65×470	145	80×620	195	110×700
46	55×370	96	65×480	146	80×640	196	110×720
47	55×380	97	65×490	147	80×650	197	110×750
48	55×390	98	65×500	148	90×500	198	110×900
49	55×400	99	65×510	149	90×510
50	55×410	100	65×520	150	90×520

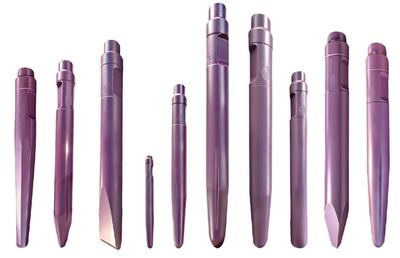

No.	OD (mm)	Length (mm)	Weight (kg)
1	40	500	4.2
2	40	520	7.2
3	45	520	5.2
4	53	520	8.7
5	45	500	5.2
6	53	550	7.7
7	60	640	11.2
8	68	750	16.8
9	75	800	21.6
10	100	1050	53.7
11	100	1050	53.7
12	100	1200	61.9
13	135 (81N)	1300	120.0
14	135 (81N)	1400	129.7
15	135 (20G)	1400	129.7
16	135 (GB8AT)	1400	129.7
17	137 (THBB1600)	1400	134.0
18	140	1300	133.0
19	140	1300	125.0
20	140	1400	134.2
21	140	1400	153.5
22	140	1400	140.0
23	140	1300	120.0
24	155	1600	194.0
25	155	1600	224.0
26	165	1700	234.0
27	165	1700	272.0
28	195 (ZD)	1800	339.0
29	200F	1800	346.0
30	215	2150	475.0

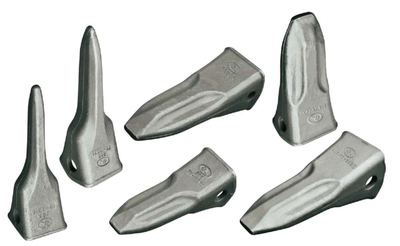

No.	Brand	Model	Part Number	Weight (kg)
1	Caterpillar	CAT305	1U3202	1.2
2	Caterpillar	CAT305	1U3202RC	1.2
3	Caterpillar	CAT307	6Y3222	2.1
4	Caterpillar	CAT307	6Y3222RC	2.4
5	Caterpillar	CAT307	6Y3222TL	2.1
6	Caterpillar	CAT311/312	1U3252	3.0
7	Caterpillar	CAT311/312	1U3252RC	2.7
8	Caterpillar	CAT311/312	1U3252TL	2.7
9	Caterpillar	CAT315/E200B	1U3302	4.4
10	Caterpillar	CAT315/E200B	1U3302TL	4.5
11	Caterpillar	CAT315/E200B	1U3302RC	5.3
12	Caterpillar	CAT320/322	1U3352	5.8
13	Caterpillar	CAT320/322	1U3352TL	6.8
14	Caterpillar	CAT320/322	1U3352RC	6.0
15	Caterpillar	CAT320/322	1U3352RC	7.1
16	Caterpillar	CAT320/322	1U3352RC	8.0
17	Caterpillar	CAT325/SK350	7T3402 / SK350	9.0
18	Caterpillar	CAT325/SK350	7T3402TL / SK350TL	9.2
19	Caterpillar	CAT325/SK350	1T3402RC / SK350RC	9.3
20	Caterpillar	CAT330	9W8452P / 1U3452	10.6
21	Caterpillar	CAT330	9W8452RC / 1U3452RC	12.0
22	Caterpillar	CAT330	9W8452RC / 1U3452RC	13.5
23	Caterpillar	CAT330	9W8452TL	12.0
24	Caterpillar	CAT330	9W8452TL	12.6
25	Caterpillar	CAT330	9N4452	16.5
26	Caterpillar	CAT345	9W8552 / 1U3552	18.0
27	Caterpillar	CAT345	9W8552TL / 1U3552TL	15.0
28	Caterpillar	CAT345	9W8552TL / 1U3552TL	17.0
29	Caterpillar	CAT345	9W8552RC / 1U3552RC	19.2
30	Caterpillar	CAT345	9W8552RC / 1U3552RC	24.5
31	Caterpillar	CAT365	6I6602RC	32.0
32	Caterpillar	CAT365	6I6602TL	23.0
33	Caterpillar	CAT374	4T4702RC	50.0
34	Caterpillar	CAT374	4T4702TL	37.0
35	Caterpillar	CAT390	310-2783RC	60.0
36	Caterpillar	CAT390	310-2783TL	48.0
37	Caterpillar	D90	475502	26.7
38	Caterpillar	D90	475502TL	26.3
39	Caterpillar	D11	6Y3552	44.0
40	Caterpillar	D11	6Y3552TL	35.0
41	Daewoo	LD60 / SY55/60	LD60T RC	1.6
42	Daewoo	LD60 / SY55/60	LD60T	1.6
43	Daewoo	LD60 / SY55/60	LD60T TL	1.6
44	Daewoo	LD100 / SY65/75	LD100T RC	2.2
45	Daewoo	LD100 / SY65/75	LD100T	2.7
46	Daewoo	LD100 / SY65/75	LD100T TL	2.2
47	Daewoo	DH130/150	2713-1221	3.7
48	Daewoo	DH130/150	2713-1221RC	3.9
49	Daewoo	DH130/150	2713-1221TL	3.0
50	Daewoo	DH200	2713-9041RC	6.5
51	Daewoo	DH220	2713-1217	5.3
52	Daewoo	DH220	2713-1217RC	4.6
53	Daewoo	DH220	2713-1217RC	5.5
54	Daewoo	DH220	2713-1217TL	5.3
55	Daewoo	DH220	2713-1217TL	5.5
56	Daewoo	DH280/R290	E262-3046RC / 2713-9038RC	8.4
57	Daewoo	DH300	2713-1219	7.0
58	Daewoo	DH300	2713-1219RC	7.0
59	Daewoo	DH300	2713-1219RC	8.0
60	Daewoo	DH300	2713-1219TL	6.7
61	Daewoo	DH360/370	2713-0032TL	9.8
62	Daewoo	DH360/370	2713-0032	9.0
63	Daewoo	DH360/370	2713-0032RC	9.8
64	Daewoo	DH360/370	2713-0032RC	11.0
65	Daewoo	DH420/500	2713-1236	14.0
66	Daewoo	DH420/500	2713-1236TL	13.2
67	Daewoo	DH420/500	2713-1236RC	14.6
68	Daewoo	LD700 / SY750/800	LD700RC	31.0
69	Daewoo	LD700 / SY750/800	LD700TL	22.2
70	Hitachi	EX60/70	021S1	2.1
71	Hitachi	EX60/70	021S1RC	2.1
72	Hitachi	EX60/70	021S1TL	2.0
73	Hitachi	D55	18S	1.3
74	Hitachi	D55	18SRC	1.3
75	Hitachi	D55	18STL	1.3
76	Hitachi	EX100	30S	2.9
77	Hitachi	EX100	25S	3.1
78	Hitachi	EX100	25SRC	3.1
79	Hitachi	EX200	35S	4.5
80	Hitachi	—	23ST	1.2
81	Hyundai	R150	61N4-31210RC	4.5
82	Hyundai	R200	E161-3027 / 1171-00041	4.3
83	Hyundai	R200	E161-3027RC / 1171-00041RC	5.0
84	Hyundai	R200	E161-3027TL / 1171-00041TL	4.4
85	Hyundai	R215 new model-6	61Q6-31310	6.0
86	Hyundai	R290/DH280 (old model)	E262-3046RC / 2713-9038RC	8.4
87	Hyundai	R350	61NA-31310RC	12.8
88	JCB	JCB	332-C4388	2.8
89	Kobelco	SK200	SK200	5.6
90	Kobelco	SK200	SK200RC	6.0
91	Kobelco	SK200	SK200TL	6.3
92	Kobelco	SK230	SK230	7.5
93	Kobelco	SK230	SK230RC	9.0
94	Kobelco	SK350/CAT325	SK350 / 7T3402	9.0
95	Kobelco	SK350/CAT325	SK350RC / 7T3402RC	9.3
96	Komatsu	PC60	201-70-24140	1.6
97	Komatsu	PC60	201-70-24140RC	1.6
98	Komatsu	PC60	201-70-24140TL	1.6
99	Komatsu	PC100	20X-70-23161	2.2
100	Komatsu	PC100	20X-70-23161RC	2.2
101	Komatsu	PC100	20X-70-23161TL	2.2
102	Komatsu	PC120	202-70-12130	3.7
103	Komatsu	PC120	202-70-12130RC	4.5
104	Komatsu	PC200	205-70-19570	4.4
105	Komatsu	PC200	205-70-19570RC	4.5
106	Komatsu	PC200	205-70-19570RC	5.3
107	Komatsu	PC200	205-70-19570TL	5.8
108	Komatsu	PC200	205-70-19570TL	5.3
109	Komatsu	PC200	205-70-19570	5.2
110	Komatsu	PC200	205-70-19570	7.0
111	Komatsu	PC300	207-70-14151	6.8
112	Komatsu	PC300	207-70-14151TL	8.0
113	Komatsu	PC300	207-70-14151RC	8.5
114	Komatsu	PC400	208-70-14152	10.2
115	Komatsu	PC400	208-70-14152RC	12.0
116	Komatsu	PC400	208-70-14152RC	14.0
117	Komatsu	PC400	208-70-14152RC	18.0
118	Komatsu	PC400	208-70-14152TL	12.7
119	Komatsu	PC400	208-70-14152TL	13.0
120	Komatsu	PC400	208-70-14152	18.0
121	Komatsu	PC500	208-70-14152TL	15.0
122	Komatsu	PC500	208-70-14152RC	19.6
123	Komatsu	PC650	209-70-54210TL	25.0
124	Komatsu	PC650	209-70-54210RC	29.0
125	Komatsu	PC1000	21N-72-14290RC	55.0
126	Komatsu	D85/D155	175-78-31230	17.0
127	Komatsu	D85/D155	175-78-31230TL	13.9
128	Komatsu	D85/D155	175-78-31230	15.3
129	Komatsu	D85/D155	175-78-31230TL	13.9
130	Liugong	LG862	72A0005	5.2
131	Liugong	LG862	72A0339RC	6.4
132	Liugong	LG862	72A0339TL	6.4
133	Liugong	LG952	LG952RC	14.0
134	Liugong	LG952	LG952TL	13.0
135	Liugong	LG922	LG922RC	5.3
136	Liugong	LG922	LG922	4.4
137	Volvo	VOLVO75	14659025RC	2.3
138	Volvo	VOLVO210/R290	14530544 / 117-01371TL	5.8
139	Volvo	VOLVO210/R290	14530544 / 117-01371	7.0
140	Volvo	VOLVO210/R290	14530544RC / 117-01371RC	7.5
141	Volvo	VOLVO360/460	14536800 / 14537843TL	13.0
142	Volvo	VOLVO360/460	14536800 / 14537843	13.3
143	Volvo	VOLVO360/460	14536800RC / 14537843RC	15.0
144	Volvo	VOLVO480	14553244TL	14.5
145	Volvo	VOLVO480	14553244RC	18.0
146	XGMA	XG50	XG50	9.3
147	XGMA	T25	—	1.9
148	XGMA	T30	—	4.3
149	—	RS115	RS115	5.8
150	—	RS225	RS225	8.8
151	—	RS225	RS225	7.5
152	—	RS225	RS225	9.5
153	—	RS235	RS235	16.0

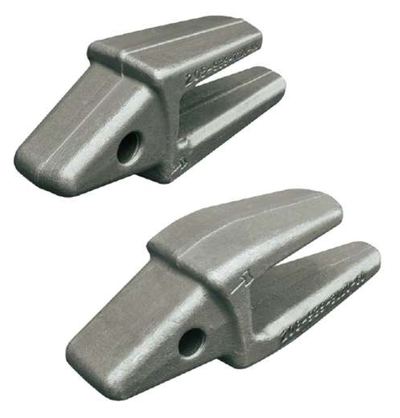

No.	Brand	Model	Part Number	Weight (kg)
1	Caterpillar	CAT307	6Y3224-25	2.7
2	Caterpillar	CAT311/312	3G66109 / 6Y3254-30	3.8
3	Caterpillar	CAT315/E200B	3G66304 / 9W1304-35	6.8
4	Caterpillar	CAT315/E200B	3G66304 / 9W1304-30	6.8
5	Caterpillar	CAT320/322	368354 / 616354-40	8.9
6	Caterpillar	CAT320/322	368354 / 616354-40	8.9
7	Caterpillar	CAT325/SK350	616404 / SK350-45	11.0
8	Caterpillar	CAT325/SK350	616404 / SK350-50	12.8
9	Caterpillar	CAT325/SK350	616404 / SK350-45	11.5
10	Caterpillar	CAT330	616464-50	19.6
11	Caterpillar	CAT330	616464-55	18.5
12	Caterpillar	CAT330	616464-60	19.6
13	Caterpillar	CAT330	616464-60	18.6
14	Caterpillar	CAT345	616554-60	31.0
15	Caterpillar	CAT345	616554-70	31.0
16	Caterpillar	CAT345	616554-60	30.5
17	Caterpillar	CAT345	616554-70	31.5
18	Caterpillar	CAT365	616604-80	50.0
19	Caterpillar	CAT374	222-7700-903	90.0
20	Caterpillar	CAT390	75-6516-100	110.0
21	Caterpillar	D90	—	27.5
22	Daewoo	LD60 / SY55/60	LD60-20	2.5
23	Daewoo	LD100 / SY65/75	LD100-25	3.7
24	Daewoo	DH130/150	2713-1222-30	5.7
25	Daewoo	DH220	2713-1218-35	8.8
26	Daewoo	DH220	2713-1218-40	8.8
27	Daewoo	DH280/R290	2713Y-9037-40	11.8
28	Daewoo	DH300	2713-1220-40	11.8
29	Daewoo	DH300	2713-1220-45	11.8
30	Daewoo	DH300	2713-1220-50	11.8
31	Daewoo	DH360/370	2713-0033-45	16.0
32	Daewoo	DH360/370	2713-0033-50	16.0
33	Daewoo	DH360/370	2713-0033-55	16.0
34	Daewoo	DH360/370	2713-0033-60	16.0
35	Daewoo	DH420/500	2713-1273 / K9005354-50	22.6
36	Daewoo	DH420/500	2713-1273 / K9005354-55	22.6
37	Daewoo	DH420/500	2713-1273 / K9005354-60	22.6
38	Hitachi	EX60/70	021S1-2.5CM	2.8
39	Hitachi	EX100	25S	5.1
40	Hyundai	R200-3CM	—	6.5
41	Hyundai	R215/9-4CM	61N8-31320	8.0
42	Kobelco	SK200	SK200-30	8.5
43	Kobelco	SK200	SK200-35	8.5
44	Kobelco	SK200	SK200-40	8.5
45	Kobelco	SK230	SK350-40	10.8
46	Kobelco	SK350/CAT325	SK350 / 616404-50	12.8
47	Komatsu	PC60	PC60-20	2.3
48	Komatsu	PC100	202-70-12140-25	3.2
49	Komatsu	PC200	205-939-7120-30	7.5
50	Komatsu	PC200	205-939-7120-35	7.5
51	Komatsu	PC200	205-939-7120-40	7.5
52	Komatsu	PC300	207-939-3120-40	14.2
53	Komatsu	PC300	207-939-3120-45	13.5
54	Komatsu	PC300	207-939-3120-50	13.2
55	Komatsu	PC300	207-939-3120-50	13.2
56	Komatsu	PC400	208-939-3120-50	20.0
57	Komatsu	PC400	208-939-3120-60	20.4
58	Komatsu	PC400	208-939-3120-50	20.0
59	Komatsu	PC400	208-939-3120-55	20.0
60	Komatsu	PC400	208-939-3120-60	20.4
61	Komatsu	PC500	PC500-60	23.7
62	Komatsu	PC650	209-70-74140	48.0
63	Komatsu	D85	—	18.5
64	Liugong	LG862	LG50-40	8.5
65	Volvo	VOLVO210	117101620-40	11.3
66	Volvo	VOLVO360/460	14550464-60	23.0
67	Volvo	VOLVO360/460	14550464-55	23.0
68	Volvo	VOLVO360/460	14550464-50	23.0
69	Volvo	VOLVO480	14556465-60	26.0
70	—	RS115	RS115-3CM	7.8
71	—	RS225	RS215-4CM	11.0

No.	Model	Part Number	Weight (kg)
1	PC200/300/400	350×80	3.9
2	PC200/300/400	450×30	8.0
3	—	100-30	1.5
4	—	130-30	2.5
5	PC200/PC300	—	3.2
6	JN-04	JN-04	4.6
7	JN-05	JN-05	3.9
8	JN-07	JN-07-35	2.3
9	JN-07	JN-07-40	2.3
10	JN-07	JN-07-50	5.3
11	JN-07	JN-07-60	6.5

No.	Model	Part Number	Weight (kg)
1	PC60	PC60R	3.0
2	PC60	PC60L	3.0
3	—	3/8/12T	—
4	LG60	LGS55RC	1.6
5	LG60	LGS55	1.6
6	FT70	FT70RC	1.6
7	FT70	FT70TL	1.6
8	U15	PE2566682RC	15.0
9	U55	RF5066682RC	1.6
10	XLC80	200TRC	14.0
11	XLC150	300TRC	4.6
12	DH55	DH55L	1.8
13	DH55	DH55SR	1.8

G.E.T. Parts

Bucket Series

Bucket Pin Series

Bucket Shaft Series

Drill Rod Series

Bucket Tooth Series

Adapter Series

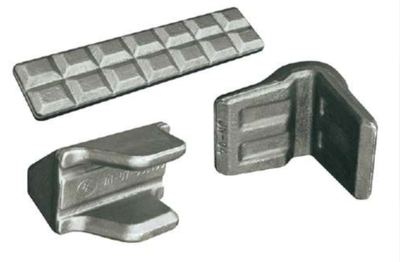

Wear Block Series

Other Series
